The scope of this PP-Module is to describe the security functionality of an Enterprise Session Controller
(ESC) in terms of [CC] and to define functional and assurance requirements for such products. This
PP-Module is intended for use with the following Base-PPs:
collaborative Protection Profile for Network Devices (NDcPP), Version 3.0e
This Base-PP is valid because a device that implements an ESC is a specific type of network device, and
there is nothing about the implementation of an ESC that would prevent any of the security capabilities
defined by the Base-PP from being satisfied. This PP-Module does not mandate a particular architecture;
the TOE may be either standalone or distributed as permitted by the Base-PP.
1.2 Terms
The following sections list Common Criteria and technology terms used in this document.
1.2.1 Common Criteria Terms
Assurance
Grounds for confidence that a TOE meets the SFRs [CC].
Base Protection Profile (Base-PP)
Protection Profile used as a basis to build a PP-Configuration.
Collaborative Protection Profile (cPP)
A Protection Profile developed by
international technical communities and approved by multiple schemes.
Common Criteria (CC)
Common Criteria for Information Technology Security Evaluation (International Standard ISO/IEC 15408).
Common Criteria Testing Laboratory
Within the context of the Common Criteria Evaluation and Validation Scheme (CCEVS), an IT security evaluation facility
accredited by the National Voluntary Laboratory Accreditation Program (NVLAP) and approved by the NIAP Validation Body to conduct Common Criteria-based evaluations.
Common Evaluation Methodology (CEM)
Common Evaluation Methodology for Information Technology Security Evaluation.
Extended Package (EP)
A deprecated document form for collecting SFRs that implement a particular protocol, technology,
or functionality. See Functional Packages.
Functional Package (FP)
A document that collects SFRs for a particular protocol, technology,
or functionality.
Operational Environment (OE)
Hardware and software that are outside the TOE boundary that support the TOE functionality and security policy.
Protection Profile (PP)
An implementation-independent set of security requirements for a category of products.
The security functionality of the product under evaluation.
TOE Summary Specification (TSS)
A description of how a TOE satisfies the SFRs in an ST.
1.2.2 Technical Terms
Audit Log
A persistent record of security-relevant events such as administrative access,
administrative actions performed, system failures, and the establishment and
termination of remote communications.
Call Detail Record
A log of call metadata that can be used to determine characteristics of a call, such as
its length and involved parties, without recording any of its content.
Call Processing
The act of translating a dialed phone number into an attempt to establish a
connection with the appropriate party; this is in contrast to the actual transmission of
voice/video media over a call.
Enterprise Session Controller
A type of network device that is responsible for establishment, processing, and termination of Voice/Video over IP (VVoIP) calls.
Service Provider
A third-party telecommunications company that is responsible for providing
commercial service and connectivity to the worldwide telephone network.
Session Border Controller
A type of network device that resides on the edge of a VVoIP network that is
responsible for filtering corrupted or potentially malicious traffic and preventing it
from entering or leaving the network.
System Log
A live display of system characteristics that can be viewed on demand to diagnose
system performance in real-time. This data is typically only stored for a short period
of time if at all.
Telecommunications Device
In this PP-Module, used to refer generally to any piece of infrastructure equipment
that the ESC may connect to other than a VVoIP Endpoint, which could include
equipment such as a call conferencing server or Session Border Controller.
Trunking
The concept of connecting multiple networks together; analogous to the use of a T1 line in a legacy telephone network.
VVoIP Endpoint
A VVoIP-capable phone or software application that a human user can use to make or receive a voice or video call.
1.3 Compliant Targets of Evaluation
The Target of Evaluation (TOE) that is defined by the combination of the NDcPP and this PP-Module is a
network device, either a physical or virtual appliance with a non-modifiable operating system
An ESC is a privately-owned telecommunication switch where its primary function is to set up, process,
and terminate voice and video calls over an enterprise-wide Internet Protocol (IP) network. ESC operation
is analogous to the tasks of 1930’s telephone switchboard-operators, which is to patch (connect) together
callers to callees. But today’s ESC executes switchboard operations automatically, while providing
simultaneous connectivity to hundreds of callers virtually instantaneously. In addition to establishing,
processing, and managing thousands of connected calls, most ESCs support auxiliary services such as
VVoIP Conferencing, Voicemail, Chat, Telepresence, Encrypted Communications, and Protocol Translation
for end-to-end connectivity of diverse endpoints.
ESCs are commonly known as Call Servers, Communications Servers, and Call-Processing Systems, and
they vary in complexities and capabilities. The typical ESC can manage thousands of calls between diverse
client devices such as VoIP-handsets, Softphones, Desktop Telepresence Systems, Room-size Video
Telepresence Systems, and Mobile Devices. ESCs are normally installed within a SCIF or other entry-controlled environment, especially systems that can register numerous VVoIP endpoints. To protect the
ESC, a Session Border Controller (SBC) is installed on the outer edge of the VVoIP network to help protect
the ESC from external network attacks. Also note that a fairly robust ESC system includes many major
components such as its own database, operating system (O/S), conferencing system, dial plan, network
manager, call-signaling protocols (e.g. H.323, Session Initiation Protocol (SIP), SS7), and its own
‘Operations, Administration, and Management (OA&M)’ application system.
If any one of these major components is successfully attacked, then one can expect the entire ESC system
to be negatively impacted. The intention of this PP-Module is to provide a list of security requirements
needed by an ESC for protection of its functionality and protection of the VVoIP communications it is
responsible for facilitating.
1.4 TOE Boundary
An ESC is a logical component of a physical hardware appliance that is responsible for establishing
connectivity between VVoIP endpoints. The ESC is an advanced version of a legacy IP-PBX system. As a
specific type of network device, an ESCTOE will be evaluated against both the NDcPP and this PP-Module. All functionality described by the SFRs are within the TOE boundary, as is the ability for the TSF to establish
secure remote connections with trusted entities in the OE.

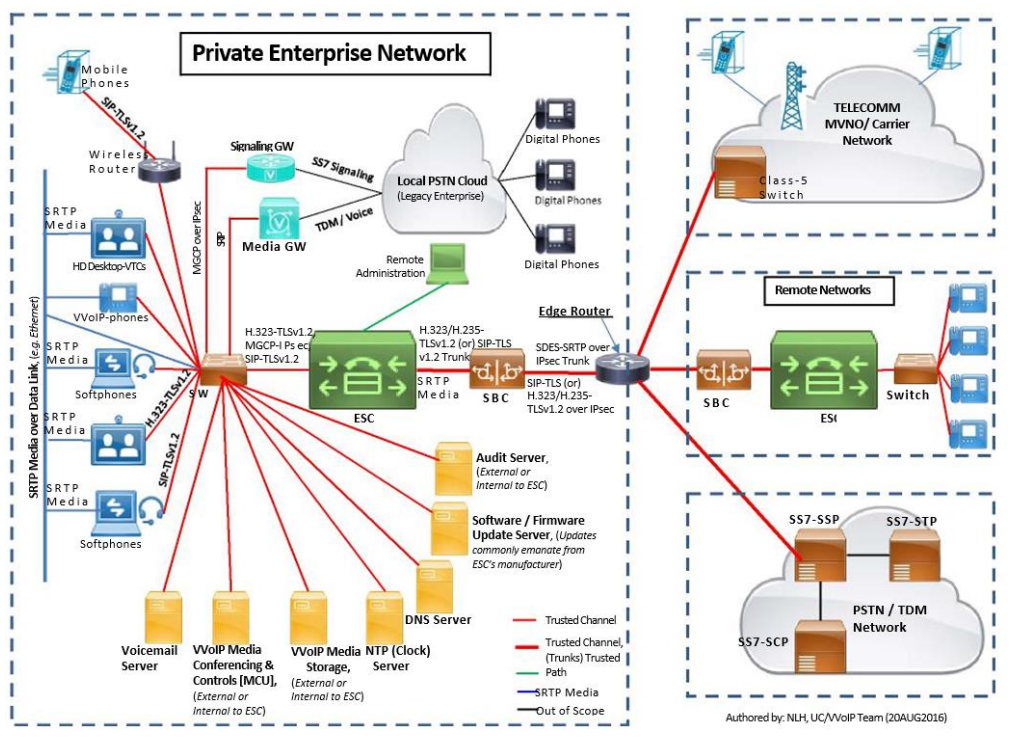

Figure 1 below shows a typical VVoIP infrastructure in which an ESC is deployed.
As can be seen from this figure, the ESC’s purpose is to provide an interface between VVoIP networks in order
to connect calls. The ESC depends on or communicates with a number of services that are located within the
internal network such as voicemail, conferencing, Network Time Protocol (NTP), Domain Name System, and
software updates that are downloaded from VVoIP endpoint manufacturers and stored on the ESC for
distribution to the clients.
Certain storage capabilities may be implemented exclusively within the TOE or within both the TOE and its OE (such as the TOE maintaining an internal audit log that is also written to an external audit server).
For connecting networks, the ESC relies on edge routing to handle lower-level communications between
the networks and on a SBC to filter out potentially malicious activity.

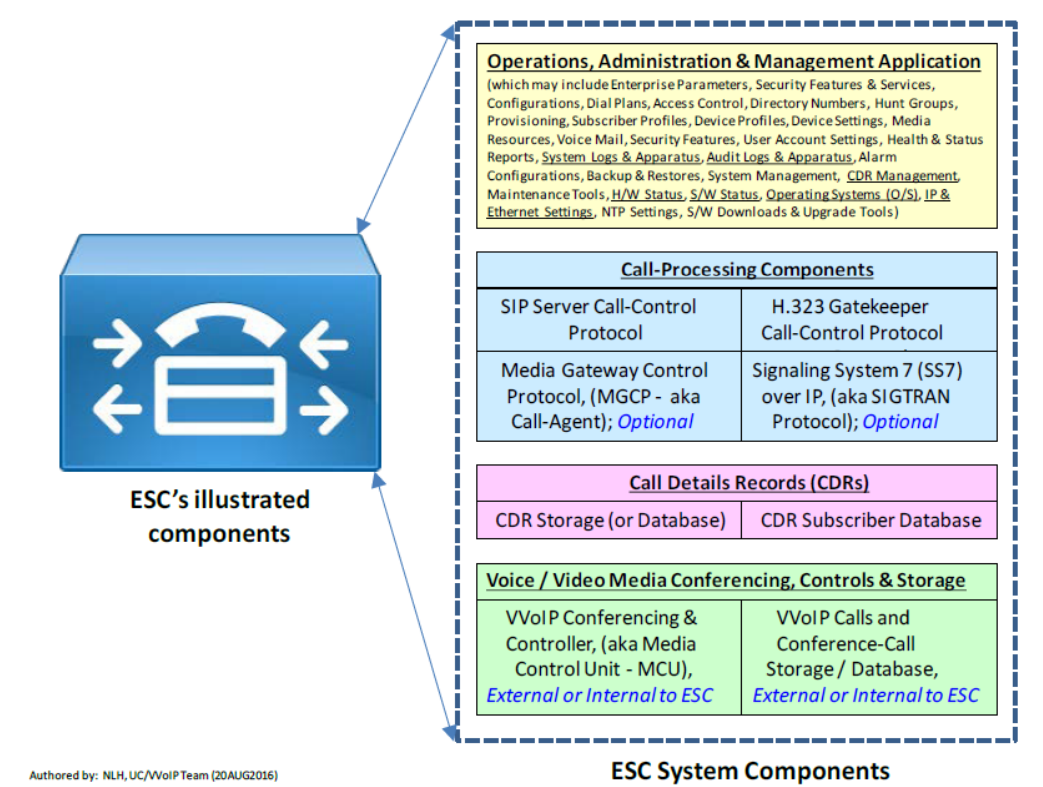

The ESC itself, which can be administered locally or remotely, consists of several different logical
components, as shown in Figure 2 below.
As can be seen from the figure above, the ESC provides the following logical capabilities:
OA&M – Responsible for providing a management interface to the ESC’s configuration.
Call Processing – Responsible for setting up and tearing down calls between VVoIP endpoints using
one or more call control protocols.
Call Detail Records – Responsible for storage of call activity for auditing purposes.
Voice/Video Media Conferencing, Controls, and Storage – responsible for establishing multi-way
conference calls and storage of call recordings.
Different ESCs may implement these capabilities in different ways. This PP-Module defines a minimum
baseline of capabilities that all conformant ESCs must provide.
1.5 Use Cases
Requirements in this PP-Module are designed to address the security problem in the following use cases. Use cases are not mutually exclusive; a TOE may implement more than one of these use cases. The
description of these use cases provide instructions for how the TOE and its OE should be made to support
the functionality required by this PP-Module.
This PP-Module defines four potential use cases for the ESCTOE:
[USE CASE 1] Dedicated Appliance
The ESC is sold and packaged as a standalone network appliance that does not have a direct interface to the underlying platform operating system, customized application, or commercial off-the-shelf database.
[USE CASE 2] Call Processing (Connect VVoIP Calls Together)
The ESC serves as a call control system that employs multiple technologies for processing and
managing voice/video calls between end-point devices. The ESC receives a call-request message
from the source IP-phone (endpoint-A) and then locates and connects the call-originator to the
destination device (endpoint-B). The ESC is used as a centralized system to process, manage, and
connect calls between registered IP-phones. It should be noted that H.323 and SIP are the ESC’s
most commonly used call-processing (i.e. call control) protocols. Both H.323 and SIP are used to
set up, process, and terminate voice/video calls between endpoints. Supplemental call control
protocols such as Media Gateway Control Protocol (MGCP) and SS7 do not limit ESC capabilities,
but instead enhances its functionality. Both H.323 and SIP provide an ESC with the capabilities
required for execution of all use cases. Both H.323 and SIP provide the ESC with call control
capabilities, support trunking between the ESC and Service Providers, support trunking between
an array of ESCs, and can use encryption schemes that secure the ESC’s call control functions.
[USE CASE 3] Trunk Calls to/from Telecommunications Service Provider
The ESC may support the ability to bundle numerous calls that originate from locally-registered
VVoIP devices onto an ESC’s communication trunk for connectivity through a telecommunications
service provider (e.g. Verizon) to remote endpoints. In this case, the ESC supports the aggregation
of traffic for all registered IP devices for the purpose of passing local calls over a single trunk to an
external service provider. This allows for a simplified network deployment where a single
connection from the ESC to the service provider can support a large number of devices, rather
than requiring each individual device to connect to the service provider separately.
[USE CASE 4] Trunk Calls in/out to Remote ESCs
Similar to trunking calls to telecommunications service providers, the ESC can trunk a large volume
of calls to other remote ESCs. An example of this deployment is a meshed configuration of trunk-connected ESCs that are deployed to support a metropolitan-sized enterprise-wide VVoIP call processing network. This particular type of use case may not require any of the meshed ESCs to
be connected to a service provider.
2 Conformance Claims
Conformance Statement
An ST must claim exact conformance
to this PP-Module.
The evaluation methods used for evaluating the TOE are a combination of the workunits
defined in [CEM] as well as the Evaluation Activities for ensuring that individual SFRs
and SARs have a sufficient level of supporting evidence in the Security Target and guidance
documentation and have been sufficiently tested by the laboratory as part of completing
ATE_IND.1. Any functional packages this PP claims similarly contain their own Evaluation
Activities that are used in this same manner.
CC Conformance Claims
This PP-Module is conformant to
Part 2 (extended)
and Part 3 (conformant)
of Common Criteria CC:2022, Revision 1.
PP Claim
This PP-Module does not claim conformance to
any Protection Profile.
This PP-Module is not conformant to any
Functional or Assurance Packages.
3 Security Problem Definition
The security problem is described in terms of the threats that the TOE is expected to address, assumptions
about its operational environment, and any organizational security policies that the TOE is expected to
enforce.
The ESC is a network appliance that incorporates multiple components and protocols, and is designed
with the purpose of connecting and managing calls that emanate from registered VVoIP endpoints. The
ESC is also designed to provide centralized control of an enterprise-wide VVoIP communication network. As the central control system that manages and processes VVoIP calls from as many as 50,000 endpoints
per node, it is critically important for the ESC to be protected because it is a single point of failure for tens
of thousands of end-users.
As a centralized system the ESC is subject to attacks from the VVoIP endpoints that are registered to the
ESC. Any VVoIP endpoint could be a threat to launch a malicious attack against the ESC. Therefore the ESC
shall possess the security requirements needed for mitigating such a threat type.
Note that as PP-Module of the NDcPP, all threats, assumptions, and Organizational Security Policies (OSPs)
defined there will also apply to an ESCTOE unless otherwise specified.
The Security Functional Requirements (SFRs) defined in this PP-Module will mitigate the threats that are
defined in the PP-Module but will also mitigate some NDcPP threats in more comprehensive detail due to
the specific capabilities provided by an ESC.
3.1 Threats
The following threats defined in this PP-Module extend the threats defined by the Base-PP.
T.MALICIOUS_TRAFFIC
A malformed packet is a protocol packet containing modified data not recognizable by the receiving
device (e.g. TOE), or contains modified protocol packets intended to crash or cause the TOE to act in
ways unintended. An attacker may attempt to use a VVoIP endpoint to send these malformed packets
or malicious traffic towards the TOE in an attempt to control or crash the call control system and
connected network devices. To mitigate VVoIP endpoint devices from being used to successfully
launch malicious traffic, the TOE must provide encryption remedies to prevent modification of
protocol packets. The TOE must also provide authentication mechanisms to prevent unauthorized
VVoIP endpoints from improperly registering to the ESC for the purpose of launching malicious
attacks.
T.NETWORK_DISCLOSURE
An attacker may attempt to “map” IP addresses of VVoIP endpoint/devices and other
telecommunications equipment for the purpose of determining the organizational structure of the
enterprise, providing reconnaissance for future targeted attacks.
T.UNAUTHORIZED_CLIENT
An attacker may attempt to register an unauthorized VVoIP endpoint to the TOE for the purpose of
impersonating a legitimate end user device in order to gain unauthorized connectivity to other clients
or active calls.
3.2 Assumptions
All assumptions for the operational environment of the Base-PP also apply to this PP-Module. A.NO_THRU_TRAFFIC_PROTECTION is still operative, but only for the interfaces in the TOE that are
defined by the Base-PP and not the PP-Module.
This document does not define any additional assumptions.
3.3 Organizational Security Policies
An organization deploying the TOE is
expected to satisfy the organizational security policy listed below in addition to all
organizational security policies defined by the claimed Base-PP.
P.SECURED_PLATFORM
Administrators in the organization ensure that general purpose computers use secure operating
systems and are configured in accordance with applicable security standards.
4 Security Objectives
4.1 Security Objectives for the Operational Environment
The OE of the TOE implements technical and procedural measures to assist the TOE in correctly providing its security functionality (which is defined by the security objectives for the TOE). The security objectives for the OE consist of a set of statements describing the goals that the OE should achieve. This section defines the security objectives that are to be addressed by the IT domain or by non-technical or procedural means. The assumptions identified in Section 3 are incorporated as security objectives for the environment.
All objectives for the operational environment of the Base-PP also apply to this PP-Module. OE.NO_THRU_TRAFFIC_PROTECTION is still operative, but only for the interfaces in the TOE that are
defined by the Base-PP and not the PP-Module.
This PP-Module also defines the following additional environmental objective:
OE.SECURED_PLATFORM
The operating system of the network device does not provide an interface or other capability that can
be used to adversely affect the TOE or its own functionality.
4.2 Security Objectives Rationale
This section describes how the assumptions and organizational
security policies map to operational environment security objectives.
In order to ensure that the ESC is not subject to compromise, it is important for the OS that it is installed on to be secure in terms of closing unnecessary interfaces and providing appropriate security functionality. However,
it is necessary for this PP-Module to make this
an organizational policy in the scenario where the TOE uses a commercial third-party OS
because the ESC vendor is not responsible for
providing the OS and therefore has no control
over its inherent functionality or
administrative configuration.
5 Security Requirements
This chapter describes the security requirements which have to be fulfilled by the product under evaluation. Those requirements comprise functional components from Part 2 and assurance components from Part 3 of
[CC].
The following conventions are used for the completion of operations:
Refinement operation (denoted by bold text or strikethrough
text): Is used to add details to a requirement or to remove part of the requirement that is made irrelevant
through the completion of another operation, and thus further restricts a requirement.
Selection (denoted by italicized text): Is used to select one or more options
provided by the [CC] in stating a requirement.
Assignment operation (denoted by italicized text): Is used to assign a
specific value to an unspecified parameter, such as the length of a password. Showing the
value in square brackets indicates assignment.
Iteration operation: Is indicated by appending the SFR name with a slash and unique identifier
suggesting the purpose of the operation, e.g. "/EXAMPLE1."
5.1 Collaborative
Protection Profile for Network Devices
Security Functional Requirements Direction
This section instructs the ST author on what selections must be made to certain SFRs contained in the
NDcPP in order to mitigate the threats defined in this PP-Module or to mitigate a threat from the NDcPP
in a more specific or restrictive manner than what it specifies.
Full assurance activities are not repeated for the requirements in this section; only the additional testing
needed to supplement what has already been captured in the Supporting Documents for the NDcPP is
included.
5.1.1 Modified SFRs
The SFRs listed in this section are defined in the NDcPP and relevant to the secure operation of the TOE.
5.1.1.1 Security Audit (FAU)
FAU_STG.2: Protected Audit Trail Storage
This SFR is optional in the NDcPP but is mandated by this PP-Module because the ESC is expected to maintain audit data internal to the TOE which must be protected from unauthorized access.
Application Note: Both the “audit data” (FAU_GEN.1 as defined in the Base-PP) and “system log” data (FAU_GEN.1/Log) are expected to be protected from unauthorized access. This SFR applies to all data related to the behavior of the TOE regardless of how it is categorized or where it is stored.
5.1.1.2 Cryptographic Support (FCS)
FCS_DTLSS_EXT.1: DTLS Server Support without Mutual Authentication
This SFR is selection-based in the NDcPP and remains selection-based in this PP-Module because DTLS may be used to secure transmitted media. In this case, it
must be claimed if ‘DTLS’ is selected in FTP_ITC.1.1/ESC in addition to the
applicable selection triggers in the Base-PP. Actual SFR not reproduced here because DTLS 1.3 has been added, so this will only need to be re-defined if the module mandates support for DTLS 1.2 and/or 1.3 rather than allowing both to be selectable.
FCS_DTLSS_EXT.2: DTLS Server Support for Mutual Authentication
This SFR is optional in the NDcPP but is selection-based in this PP-Module because any ESC use of DTLS
requires mutually-authenticated DTLS to be implemented. Therefore, this SFR must be claimed if ‘DTLS’ is
selected in FTP_ITC.1.1/ESC.
FCS_NTP_EXT.1: NTP Protocol
FCS_NTP_EXT.1.2: The TSF shall use only the following NTP version: [NTP v4
(RFC 5905)].
Application Note: This SFR is selection-based in the Base-PP but is mandatory for a TOE that conforms to this PP-Module because the refinement to FPT_STM_EXT.1 requires this SFR to be claimed in all cases.
This SFR has been refined from the NDcPP to permit the NTP v4 selection only. No
other parts of the SFR are modified.
FCS_TLSC_EXT.1: TLS Client Protocol without Mutual Authentication
This SFR is selection-based in the NDcPP but is mandated by this PP-Module
because Transport Layer Security (TLS) is used to secure SIP and H.323
communications. SFR not reproduced because the modification previously was to mandate the TLS 1.2 claim (when older versions were still allowed). Unless this module will mandate 1.2 and/or 1.3 it doesn't need to be reproduced as a Modified SFR - we only need to change the status of it (same as with FCS_DTLSS_EXT.1 and FCS_TLSS_EXT.1).
This SFR is optional in the NDcPP but is mandated by this PP-Module because SIP and H.323 communications require mutually-authenticated TLS.
FCS_TLSS_EXT.1: TLS Server Protocol without Mutual Authentication
This SFR is selection-based in the NDcPP but is mandated by this PP-Module because Transport Layer Security (TLS) is used to secure SIP and H.323 communications. as with DTLSS and TLSC, modified SFR not shown here because previously the only modification was to prohibit pre-1.2 versions of TLS. Since those are no longer supported by the PP, the SFR can just be reused as-is unless we are mandating one or both of 1.2 and 1.3 (i.e. taking all or part of the selection away from the ST author).
FCS_TLSS_EXT.2: TLS Server Protocol Mutual Authentication
This SFR is optional in the NDcPP but is mandated by this PP-Module because SIP and H.323 communications require mutually-authenticated TLS.
5.1.1.3 Identification and Authentication (FIA)
FIA_X509_EXT.1/Rev: X.509 Certificate Validation
This SFR is selection-based in the Base-PP. It is mandatory when the TOE claims
conformance to this PP-Module because X.509 certificate validation is needed when establishing TLS communications for SIP and H.323. There are no changes to the SFR otherwise.
FIA_X509_EXT.2: X.509 Certificate Authentication
FIA_X509_EXT.2.1:
The TSF shall use X.509v3 certificates as defined by RFC 5280 to support authentication for TLS, [selection: DTLS, HTTPS, IPsec, SSH, no other protocol], VVoIP endpoint registration, and [selection: code signing for system software updates, [assignment: other uses], no additional].
Application Note:
The NDcPP requires the ST author to select the protocol(s) that certificate
authentication is used for. This element has been modified from its definition in
the Base-PP by mandating support for TLS because FCS_TLSC_EXT.1 and
FCS_TLSS_EXT.2 are mandatory SFRs for a TOE that conforms to this PP-Module. Additional protocols may or may not be selected depending on the other
functionality provided by the TSF.
FIA_X509_EXT.2.2:
When the TSF cannot establish a connection to determine the validity of a certificate, the TSF shall [selection: allow the administrator to choose whether to accept the certificate in these cases, accept the certificate, not accept the certificate].
Application Note: This SFR is selection-based in the Base-PP but is made
mandatory when this PP-Module is claimed because the ESC implements functionality that requires the use
of certificate authentication
FIA_X509_EXT.3: X.509 Certificate Requests
This SFR is selection-based in the NDcPP but is mandated by this PP-Module because an ESC must implement security functions that require it to be issued its own X.509 certificate.
5.1.1.4 Protection of the TSF (FPT)
FPT_STM_EXT.1: Reliable Time Stamps
FPT_STM_EXT.1.2: The TSF shall [synchronize time with an NTP server.
Application Note: This SFR has been refined from the NDcPP to permit the NTP server selection only. No other parts of the SFR are modified.
5.2 TOE Security Functional Requirements
The following section describes the SFRs that must be satisfied by any TOE that claims conformance to this PP-Module. These SFRs must be claimed regardless of which PP-Configuration is used to define the TOE.
5.2.1 Auditable Events for Mandatory SFRs
Table 2: Auditable Events for Mandatory Requirements
ID of Administrator that attempts to connect trunk to
external device (if available);
IP address of device where trunk request was
initiated (if available);
IP address of external device where trunk is to be
connected (if available).
FIA_UAU.2/VVoIP. Authentication of external VVoIP
endpoints must occur before registration. In short,
no successful registration of VVoIP endpoint can
happen until after the successful authentication of
the VVoIP endpoint.
Successful or failed registration of
VVoIP endpoint/device
ID of Administrator that attempt to register VVoIP
endpoint to TOE (if available);
IP address of device where registration attempt was
initiated (if available);
IP address of VVoIP endpoint that attempt to register
to ESC (if available).
The TSF shall record within each CDR at least the following information:
Date and time of the auditable event, type of event, subject identity (if applicable), and the outcome (success or failure) of the event;
For each auditable event type, based on the auditable event definitions of the functional components included in the PP, PP-Module, functional package, or ST,
[
Application
Note:
The TOE should be uniquely identified as part of the CDR so that there is attribution of individual CDRs in environments where multiple ESCs are feeding CDRs to a centralized server.
The evaluator shall examine the TSS to ensure it describes the format of the Call Detail Records (CDRs) generated by the TOE in sufficient detail to demonstrate that the requirement is satisfied.
Guidance
The evaluator shall examine the guidance documentation to determine that it describes the format of CDRs in sufficient detail for the reader to understand their contents and any configuration actions that are required in order for the CDRs to include the data that is mandated by this PP-Module.
Tests
Note that these test activities may be performed in conjunction with other tests.
The evaluator shall deploy the TOE in an environment where it can be used to establish calls for a supported signaling protocol (i.e. Session Initiation Protocol (SIP), H.323). The evaluator shall place a call between two VVoIP endpoints, allow it to remain connected for three minutes, and then hang up. The evaluator shall then verify that the TOE generated CDRs for this call that contain all necessary information in the format specified by the operational guidance and that this information is accurate. The evaluator shall then place a second call where the call is transferred to a third VVoIP endpoint prior to termination.
The evaluator shall repeat this testing for each type of signaling protocol supported by the TOE.
The TSF shall be able to generate system log of the following auditable events:
Start-up and shutdown of the audit functions;
All auditable events for the [not specified]
[current IP connections, NTP status, CPU usage, memory usage, disk and file storage
capacity, audit storage capacity, [selection: power Status, fan status, no other activities]
The TSF shall record within each system log data at least the following information:
Date and time of the auditable event, type of event, subject identity (if applicable), and the outcome (success or failure) of the event;
For each auditable event type, based on the auditable event definitions of the functional
components included in the PP, PP-Module, functional package, or ST, [event details described in System Log Events table].
Table 3: System Log Events
Event
Additional System Log Record Contents
Current IP connections
Network interface card (NIC); Status (up or down).
Unlike audit data (see FAU_GEN.1), system log data is used primarily for real-time analysis of system behavior. This data is expected to be treated as non-persistent data by the TOE.
The ST author is expected to identify the sampling interval for the information presented in the system log so that it is clear to the evaluator how often updates to that information will be presented to an administrator
Logging of power status is optional and is only intended for TOEs that have multiple redundant power supplies. Logging of fan status is also optional.
The evaluator shall examine the TSS to ensure that and ensure that it mentions the system log and describes how the log is presented. Each type of entry in the system log shall be listed along with a brief description of each content field and what the sampling interval for the data is. The evaluator shall also check to make sure that every log type mandated by the PP-Module is described and that the description of the content fields contains the information required in FAU_GEN.1.2/Log.
Guidance
The evaluator shall check the guidance documentation and ensure any configuration necessary to ensure the TOE generates the required system log is included. The evaluator shall also check that each required system log item is described in the guidance documentation along with each required content field.
Tests
The evaluator shall perform the following tests:
Test FAU_GEN.1/Log:1:
(current IP connections): First, confirm TOE is connected via IP by pinging it from a remote device. Once IP is confirmed connected, take down IP connection either by physically disconnecting network cable from the TOE’s NIC; or as TOE Administrator, issue command to logically take down IP connection. Peruse system logs to confirm IP connection is down. After confirming IP connection as down, reconnect IP or logically bring up IP connection and confirm IP status as up. Repeat for each physical network interface of the TOE.
Test FAU_GEN.1/Log:2:
(CPU usage): The evaluator shall use the TOE and monitor the CPU usage status over a period of 10 minutes and observe that fluctuations in CPU usage are reported. It is not necessary to verify that this information is accurate at a low level but the evaluator is expected to justify at a high level why these fluctuations are occurring (e.g. CPU usage spikes while the TOE is establishing a call).
Test FAU_GEN.1/Log:3:
(memory usage): The evaluator shall use the TOE and monitor the memory usage status over a period of 10 minutes and observe that fluctuations in memory usage are reported. It is not necessary to verify that this information is accurate at a low level but the evaluator is expected to justify at a high level why these fluctuations are occurring (e.g. memory usage spikes while the TOE is establishing a call or downloading an update).
Test FAU_GEN.1/Log:4:
(disk and file storage capacity): The evaluator shall use the TOE and monitor the disk capacity status over a period of 10 minutes and observe that fluctuations in storage capacity are reported. It is not necessary to verify that this information is accurate at a low level but the evaluator is expected to justify at a high level why these changes are occurring (e.g. the evaluator transfers a file with a known file size to
a disk partition and observes that the available space decreased by a corresponding amount).
Test FAU_GEN.1/Log:5:
(fan status) (conditional): First, confirm fan is working as designed. Once fan is confirmed functioning properly, disconnect fan to shut it down. Peruse system logs to confirm fan has been reported as down. After confirming fan as down, reconnect fan and confirm fan as up. Repeat this process for each fan that is monitored by the TSF.
Test FAU_GEN.1/Log:6.1:
(conditional): If TOE employs redundant power supplies (PS), then test may be a simple matter of cycling one PS while leaving other power units untouched. Reset one PS while allowing the other(s) to remain up. Peruse system log and verify message indicating PS cycled (went down & up).
Test FAU_GEN.1/Log:6.2:
(conditional): If TOE is supported by a single PS, than test has to be verified by waiting for system log to provide power status on periodic intervals. If system log does not report power status, then PS test
failed.
For each system log event described in FAU_GEN.1.1/Log, the evaluator shall review the system log to observe that they are displayed in real time. For those system log events that are periodic or persistent status messages, the evaluator shall observe that they are shown in the system log at the proper time. For those events that are triggered by a certain event, the evaluator shall cause that event to occur and ensure that it is logged. For example, the evaluator shall verify that the TOE logs data link connection status by unplugging and reconnecting the TOE’s Ethernet connection and verifying that an appropriate log was generated for both. In all cases, the evaluator shall verify that the contents and formatting of the log data are consistent with what is defined in FAU_GEN.1.2/Log.
The evaluator shall examine the TSS to ensure it describes how CDRs are protected against unauthorized modification or deletion. The evaluator shall also examine the TSS to ensure it describes any administrative access controls placed on CDR modification (e.g., Administrator Type 1 can modify/delete CDRs while Administrator Type 2 cannot modify/delete CDRs).
Guidance
The evaluator shall examine the guidance documentation to determine that it describes any configuration required for protection of the locally stored CDRs against unauthorized modification. The evaluator shall also examine the documentation to ensure that any administrative access controls and configuration of the access controls on CDR access are described.
Tests
The evaluator shall log in to the TOE as a Security Administrator and verify that authorized administrators are able to view stored CDRs but have no ability to modify them.
If an administrator access control restricts a user associated with the Security Administrator role from accessing CDR data, the evaluator shall then log in to the TOE as the user that lacks privilege to interact with CDRs and observe that there is no way for that user to access the CDR data.
The TSF shall [selection: have, not have] the capability to record voice and video
call data.
Application
Note:
If "have" is selected, both FAU_STG.2/VVR and FAU_VVR_EXT.2 must be claimed and “Ability to enable/disable voice and video recordings for any registered VVoIP endpoint” must be selected in FMT_SMF.1.1/ESC.
The TSF shall enforce the [enterprise session controller SFP] based on the following types of subject and information security attributes: [assignment:
method by which the TSF identifies each endpoint for a call] using the following call control protocols: [selection: SIP, H.323] and [selection: SS7, MGCP, no other call control protocols].
The TSF shall permit an information flow between a controlled subject and controlled information via a controlled operation if the following rules hold: [when valid communication through the TOE is attempted, the TSF will establish a connection between itself and the caller; the TSF will establish a second connection between itself and the callee; and the TSF will redirect all communications that it receives between the two endpoints out through the proper connection].
The TSF shall explicitly authorize an information flow based on the following rules: [assignment:
rules, based on security attributes, that explicitly authorize information flows].
Application
Note:
The expectation of this element is that the ST author define any explicit allowlist behavior that overrides the normal information flow handling to automatically open a communications channel through the TOE. It is acceptable to complete the assignment with “no additional rules” if there are no exceptions to the behavior defined in FDP_IFF.1.2 and 1.3.
The TSF shall explicitly deny an information flow based on the following rules: [assignment:
rules, based on security attributes, that explicitly deny information flows]
Application
Note:
The expectation of this element is that the ST author define any explicit denylist behavior that overrides the normal information flow handling to automatically block a communications channel through the TOE. It is acceptable to complete the assignment with “no additional rules” if there are no exceptions to the behavior defined in FDP_IFF.1.2 and 1.3.
The evaluator shall examine the TSS to verify that it describes the call control protocol(s) used by the TOE and the circumstances under which the TSF will transmit streaming media data. The evaluator shall verify that the TSF does not transmit any streaming media in circumstances where a VVoIP endpoint operator would not reasonably expect it to do so and whether there are any explicit overrides to the policy.
Guidance
If any aspects of the TOE’s call control functionality are configurable (such as the specific call control protocol used or the circumstances in which the TSF will or will not transmit streaming media data), the evaluator shall examine the operational guidance to verify that instructions for configuring this behavior are provided.
Tests
The evaluator shall perform one or more of the following tests depending on the protocols that the TOE claims to support. For each test performed, the evaluator shall conduct the test for each supported environment (IPv4 and/or IPv6).
The evaluator shall set up a test environment where two SIP clients are registered to the TOE and the TSF is configured to allow call signals to capture through it. The evaluator shall use a packet sniffer to capture call-signaling packets traversing the TOE. The evaluator shall place a call from one SIP client to the other and observe via packet capture that two separate SIP connections are established: one from the caller to the TOE and the other from the TOE to the callee.
The evaluator shall set up a test environment where two H.323 clients are registered to the TOE and the TSF is configured to allow call signals to capture through it. The evaluator shall use a packet sniffer to capture call-signaling packets traversing the TOE. The evaluator shall place a call from one H.323 client to the other and observe via packet capture that two separate H.323 connections are established: one from the caller to the TOE and the other from the TOE to the callee.
Unlike H.323 & SIP which are call-setup and teardown protocols primarily used to process calls between local VVoIP endpoints that are registered to the ESC, the SS7 protocol focuses on setup and teardown of calls over the legacy Public Switch Telephone Network (PSTN). Therefore, when assessing the SS7 protocol, the evaluator will need to configure the TOE to make a call from a local VVoIP endpoint through its SS7 interface to a remote endpoint.
The evaluator shall set up a test environment where a single VVoIP endpoint is registered to the TOE (through H.323 or SIP) and the TSF is configured to allow call signals through it. The evaluator shall use a packet sniffer to capture call-signaling packets traversing the TOE. The evaluator shall place a call from the locally registered VVoIP endpoint to a remote endpoint that requires the use of the TOE’s SS7 extension. The evaluator shall observe and capture SS7 signaling messages transiting through the TOE to both the local client and remote SS7-based endpoint. The evaluator shall verify that the TOE successfully sets up, processes, and tears down call between local VVoIP endpoint and external telephony device requiring SS7 signaling for connectivity. The evaluator shall also verify that the TOE transmits and receives the SS7 signaling messages IAM, ACM, and ANM to set up a call and RLC to tear down a call. The evaluator
shall verify that SS7 call processing is employed by verifying that a two-way conversation can occur over
the connected call.
If the TSF supports both H.323 and SIP, the evaluator shall repeat this test for the VVoIP endpoint
registration method not chosen during the first iteration of the test
Unlike H.323 & SIP which are call-setup and teardown protocols primarily used to process calls between local VVoIP-clients that are registered to the ESC, the MGCP protocol focuses on the control of Media Gateways (MG) which set up voice calls between VVoIP networks and the PSTN. The TSF employs MGCP to control MGs that provision VVoIP calls for external connection to the PSTN and from the PSTN to the local VVoIP network. Therefore, when assessing the SS7 protocol, the evaluator will need to configure the TOE to make a call from a local VVoIP-client through its MGCP interface (i.e. MGC/Call Agent) to a remote endpoint.
The evaluator shall set up a test environment where a single VVoIP endpoint is registered to the TOE (through H.323 or SIP) and the TSF is configured to allow call signals through it. The evaluator shall use a packet sniffer to capture call-signaling packets traversing the TOE. The evaluator shall place a call from the locally registered VVoIP endpoint to a remote endpoint that requires the use of the TOE’s MGCP extension for PSTN connection. The evaluator shall observe and capture MGCP signaling messages transiting the TOE to/from the local VVoIP endpoint and out to remote MGCP/PSTN endpoint. The evaluator shall verify that the TOE successfully sets up, processes, and tears down the call between the local VVoIP endpoint and external telephony device requiring MGC/PSTN signaling for connectivity. The evaluator shall also verify that the TOE transmits and receives the MGCP signaling messages NTFY, CRCX, and MDCX to set up a call and DLCX to tear down a call. The evaluator shall verify that MGCP call processing is employed by verifying that a two-way conversation can occur over the connected call.
If the TSF supports both H.323 and SIP, the evaluator shall repeat this test for the VVoIP endpoint registration method not chosen during the first iteration of the test.
The TSF shall ensure that any previous information content of a resource is made
unavailable upon the [selection: allocation of the resource to, deallocation of the
resource from] the following objects: [assignment:
disk storage location(s) erased
by the TSF during factory reset or other wipe operation].
Application
Note:
The TOE is expected to follow guidelines for [NIST SP 800-88], ‘Disk Storage
Sanitization’ as the method for ensuring that residual information is cleared from
both volatile and nonvolatile memory. This involves overwriting the entire disk or
disk partition with zeroes, followed by all ones, followed by all zeroes. Since it is
not feasible to pause the wipe operation while in progress it is sufficient for the evaluator to observe during testing that the final result is all zeroes; however, the
vendor-provided evidence is expected to provide a justification that [NIST SP 800-
88] guidelines are being followed.
The evaluator shall examine the TSS to ensure it describes the data objects overwritten as part of the
sanitation operation. This should include both the TSF data that is overwritten as well as the characteristics of the physical drive that is erased (e.g. an entire drive, one or more logical partitions of a
drive). The evaluator shall also examine the TSS to ensure that the sanitation process is described. In
particular, the TSS must describe how the sanitation process follow the NIST 800-88 guidelines for "Disk
Storage Sanitation."
Guidance
The evaluator shall examine the guidance documentation to ensure it describes the data objects
overwritten as part of the sanitation operation. The evaluation shall also ensure that the guidance
documentation describes the administrative procedures necessary to trigger the sanitation operation. The
evaluation shall also ensure that the TOE indication that the sanitization operation has completed is
described, if applicable.
Tests
The following test may require the evaluator to have access to developer tools.
The evaluator shall identify the storage locations (e.g. drives, disk partitions) that are erased when the
TOE performs a wipe operation. The evaluator shall then populate each of these locations with large
amounts of ‘junk’ data so that a known amount of their storage is used. The evaluator shall use the TOE
to verify that the current storage levels are consistent with the amount of data that was introduced to
each location.
The evaluator shall then initiate a wipe command and observe that each location that is subject to erasure
is 100% free. The evaluator shall use forensic tools to examine each location that is subject to erasure and
verify that the data has been overwritten by all zeroes.
5.2.4 Identification and Authentication (FIA)
FIA_UAU.2/TC User Authentication before Any Action (Telecommunications Devices)
The TSF shall require each telecommunications device to be successfully
authenticated before allowing any other TSF-mediated actions on behalf of that
device.
The evaluator shall examine the TSS and ensure that the telecommunications device authentication
procedures are described including a description of how the TOE prevents TSF-mediated actions by
unauthenticated devices.
Guidance
The evaluator shall examine the guidance documentation and ensure that any actions required to enable
authentication of telecommunications devices is described.
Tests
The following testing shall be repeated for each supported environment (IPv4 and/or IPv6):
The evaluator shall deploy the TOE in an environment with another ESC and configure both ESCs to
support an encrypted trunk to one another, where the trunk is encrypted using a security protocol
selected in FTP_ITC.1 from the Base-PP. The evaluator shall also deploy a packet sniffer on the encrypted
trunk channel. The evaluator shall perform the following tests:
Test FIA_UAU.2/TC:1:
The evaluator shall configure the TOE to accept encrypted trunk communications from the remote
ESC using authentication credentials and IP address. The evaluator shall then use the remote ESC to
connect to the TOE and verify that the encrypted trunk is successfully established. The evaluator shall use
packet captures to verify that encrypted traffic is transmitted between the TOE and the remote ESC.
Test FIA_UAU.2/TC:2:
The evaluator shall repeat test 1 but enter invalid credentials when attempting to authenticate. The evaluator shall observe that the encrypted trunk is not successfully established due to invalid
credentials.
Test FIA_UAU.2/TC:3:
The evaluator shall repeat test 1 but configure the TOE to accept encrypted trunk communications
from a different IP address than what is assigned to the remote ESC. The evaluator shall then attempt to
connect to the TOE using the remote ESC with valid credentials and observe that the encrypted trunk is
not successfully established due to invalid IP address.
FIA_UAU.2/VVoIP User Authentication before Any Action (VVoIP Endpoints)
The TSF shall require each VVoIP endpoint to be successfully authenticated before allowing any other TSF-mediated actions on behalf of that endpoint.
Application
Note:
This includes both the establishment of voice/video calls and the TOE-initiated application of an update to the VVoIP endpoint software/firmware.
The evaluator shall examine the TSS and ensure that the VVoIP endpoint authentication procedures are
described including a description of how the TOE prevents TSF-mediated actions by unauthenticated
devices. In addition to establishment of voice/video calls, this includes TOE-initiated application of an
update to the VVoIP endpoint software/firmware.
Guidance
The evaluator shall examine the guidance documentation and ensure that any actions required to
authenticate VVoIP endpoints are described.
Tests
The following testing shall be repeated for each supported environment (IPv4 and/or IPv6):
The evaluator shall ensure that the TSF is configured to support encrypted SIP and/or H.323 client
connections and that any VVoIP endpoint devices used for this testing can use the protocol that the TSF
is configured to support.
The evaluator shall perform the following tests:
Test FIA_UAU.2/VVoIP:1:
The evaluator shall attempt to place a call with a VVoIP endpoint device without registering to the
TOE. The attempt should fail. The evaluator shall also attempt to download an update from the TOE and
observe failure.
Test FIA_UAU.2/VVoIP:2:
[Conditional on TOE requiring certificate authentication to establish the connection used for
registration]: The evaluator shall load an invalid certificate onto a VVoIP endpoint device and initiate the
registration process. The registration process should fail due to an invalid certificate.
Test FIA_UAU.2/VVoIP:3:
The evaluator shall connect to the TOE and initiate the registration process. When prompted for
credentials, the evaluator shall supply invalid credentials and observe that the registration process fails
for that reason.
Test FIA_UAU.2/VVoIP:4:
The evaluator shall connect to the TOE and initiate the registration process. When prompted for
credentials, the evaluator shall supply valid credentials and observe that the registration process succeeds
and that the registered device can be used to place calls.
The TSF shall provide only enough functionality to set new Security
Administrator credentials when configured with default credentials or no
credentials
The evaluator shall check the TSS and ensure that it identifies if the TOE is delivered with default or no
Security Administrative credentials. The evaluator shall also check the TSS and ensure that the
functionality available when the TOE is configured with default credentials or no credentials is identified. The evaluator shall examine the identified functionality and ensure that only enough functionality to set
new Security Administrator credentials is available when the TOE is configured with default credentials or
no credentials.
Guidance
The evaluator shall check the guidance documentation and ensure that the administrative functionality
that is available when the TOE is configured with default credentials or no credentials is identified. The
evaluator shall examine the guidance documentation and ensure the instructions for establishing new
Security Administrative credentials is described.
Tests
Note that this test may only be deployed the first time the TOE is run or immediately following a factory
reset.
The evaluator shall perform the initial setup steps for the TOE as specified in the administrative guidance. The evaluator shall verify that if a default administrative account is used to log in to the TOE for the first
time, the login event is immediately followed by a prompt to change the password for the default account. If no default account is used, the evaluator shall verify that they are prompted to define an initial
administrator account and that no further security-relevant actions can be performed until the evaluator
has authenticated to the TOE using that account.
FMT_SMF.1/ESC Specification of Management Functions (ESC)
This SFR defines additional management functions for the TOE beyond what is
defined in the Base-PP as FMT_SMF.1. The TOE may have all management
functionality implemented in the same logical interface; it is not necessary for “network device management” and “enterprise session controller management”
to be implemented in separate interfaces.
The TOE developer is encouraged, but not required, to provide a more
sophisticated password strength policy than what is prescribed by
FIA_PMG_EXT.1 as defined in the NDcPP. This may include the ability for an
administrator to configure the metrics used to define an acceptable password. At
minimum, the minimum password length must be configurable. If "have” is
selected in FAU_VVR_EXT.1.1, then "Ability to enable/disable voice and video
recordings for any registered VVoIP endpoint" must be selected.
The selection “Ability to configure NTP” must be included in the ST if the TOE uses
NTP for timestamp configuration. If selected, FCS_NTP_EXT.1 from the NDcPP
must be claimed as well.
If “Ability to specify the set of audited events” is selected, FAU_SEL.1 must be
claimed.
For each management function specified in FMT_SMF.1.1/ESC, the evaluator shall conform that the
management function is provided by the TOE. The evaluator shall also conform that the TSS details, for
each supported management interface, which specific functions are available at that interface.
Guidance
If "Ability to enable/disable voice and video recordings for any registered VVoIP endpoint" is selected, the
evaluator shall examine the guidance document to verify it describes how to enable or disable recordings
of voice and video calls.
Tests
Test FMT_SMF.1/ESC:1:
(Conditional): If “Ability to enable/disable voice and video recordings for any registered VVoIP
endpoint” is selected, the evaluator shall deploy a test environment with two or more registered VVoIP endpoints. The evaluator shall choose two endpoints and configure the TOE to disable enable voice/video
recording between them. The evaluator shall place a call between the two selected endpoints, verify that
the call is successfully established, then terminate the call and verify that a recording is generated. The
evaluator shall then configure the TOE to disable voice/video recording between the same two endpoints,
repeat the call, verify that the call is established, then terminate the call. The evaluator shall examine the
location where the first recording was generated and verify that no new recording is generated.
Test FMT_SMF.1/ESC:2:
The evaluator shall deploy a test environment with two or more registered VVoIP endpoints. The
evaluator shall choose two endpoints, place a call between them, and verify that the call is successfully
established. While the call is active, the evaluator shall use the TSF to review active connections and verify
that the VVoIP endpoints’ connections to the TOE are active. The evaluator shall discontinue the call and
verify that the TSF no longer shows the VVoIP endpoints’ connections to the TOE as active.
Test FMT_SMF.1/ESC:3:
(Conditional): If “ability to configure the password policy” is selected, the evaluator shall observe
what the password strength policy is configured to by default on the TOE and shall verify that it is enforced
by defining several weak administrative passwords for a given administrator account that are
appropriately rejected by the TSF. The evaluator shall then modify the TOE’s password policy in such a
manner that at least one of these weak passwords would now be accepted by the policy. The evaluator
shall repeat the attempted password changes and observe that the TSF correctly accepts or rejects the
passwords based on the new policy.
5.2.6 Protection of the TSF (FPT)
FPT_FLS.1/ESC Failure with Preservation of a Secure State
The TSF shall preserve a secure state through the following means: [selection: audible alarm, visual indicator, reboot of the TOE, shutdown of the TOE, [assignment:
other methods]]
when the following types of failures occur: [failure
of self-tests defined in FPT_TST_EXT.1, failure of [assignment:
hardware
components that affect the proper functioning of the TOE]].
The evaluator shall examine the TSS to verify that it describes the TOE failures that can occur and the
TOE’s response to these failures. The evaluator shall also examine the TSS to verify that it provides
sufficient detail to justify how the TOE’s responses to these failures preserves a secure state.
Guidance
The evaluator shall examine the guidance documentation and ensure that if the TOE’s failure handling
behavior is configurable, any instructions for doing so are provided. The evaluator shall also examine the
guidance documentation to verify that it identifies the potential failures that can occur and the TOE’s
response to them so that the reader is aware of when the TSF has failed to a secure state.
Tests
The evaluator shall perform the EAs for FPT_TST_EXT.1 as defined in the NDcPP SD. For each self-test
failure, the evaluator shall verify that the observed TOE behavior is consistent with the failure state
defined in the TSS for this SFR. If this functionality is configurable, the evaluator shall reconfigure the TOE
to each possible response to a self-test failure and re-execute the testing as many times as is necessary to
demonstrate that the configured behavior is observed in each case.
The TSF shall be capable of using TLS and [selection: DTLS, IPsec, no other protocols] to provide a communication channel between itself and another trusted IT product supporting the following capabilities: VVoIP endpoints (for protection of signaling protocols), VVoIP endpoints (for protection of voice/video/media content), other ESC devices (for SIP trunking), [selection: VVoIP conferencing system, no other capabilities] that is logically distinct from other communication channels and provides assured identification of its end points and protection of the channel data from modification or disclosure.
The evaluator shall perform the TSS evaluation activities specified in the NDcPP SD for FTP_ITC.1 for the
communications interfaces and protocols specified in this iteration of the requirement.
Guidance
The evaluator shall perform the AGD evaluation activities specified in the NDcPP SD for FTP_ITC.1 for the
communications interfaces and protocols specified in this iteration of the requirement.
Tests
In addition to the assurance activities specified in the NDcPP SD for FTP_ITC.1, the evaluator shall perform
the following tests:
Test FTP_ITC.1/ESC:1:
For each combination of signaling protocol (SIP, H.323), method of securing that protocol (IPsec,
TLS), and method of securing transmitted media (SRTP, DTLS), the evaluator shall configure the TOE to
use the selected protocols through a trunk to a remote ESC. The evaluator shall register a VVoIP endpoint
to the TOE and a second VVoIP endpoint to the remote ESC. The evaluator shall place a packet sniffer on
the network and capture traffic from the TOE to the local VVoIP endpoint and the remote ESC. The
evaluator shall then place a call from one VVoIP endpoint to the other. The evaluator shall verify that the
TOE’s audit trail shows that the local VVoIP endpoint was configured as a client using the configured
protocol, that the traffic between the local VVoIP endpoint and the TOE is unintelligible, and that the
traffic between the TOE and the remote ESC is protected for both signaling and media communications
using the configured methods of securing them.
The evaluator shall repeat this test as many times as is necessary to demonstrate that each combination
of securing the signaling protocol communications, securing the media protocol communications, and
securing the SIP trunk from the TOE to the remote ESC can be used as claimed. Note that in any case
where this results in double encryption of the traffic (e.g. SRTP-protected media tunneled through IPsec
over a SIP trunk), the evaluator shall conduct the test with the outer layer enabled and then disabled in
order to verify that both methods of protection are being used.
Test FTP_ITC.1/ESC:2:
(conditional): If ‘VVoIP conferencing system’ is selected, the evaluator shall repeat test 1
(depending on the protocols the TOE claims to support) in an environment where the TOE is being used
to establish a conference call between three or more registered VVoIP endpoints. In both cases, the
evaluator shall verify that all SIP and SRTP traffic is encrypted.
5.3 TOE Security Functional Requirements Rationale
The following rationale provides justification for each SFR for the TOE,
showing that the SFRs are suitable to address the specified threats:
This SFR mitigates the threat by requiring the TSF to support NTP communications to obtain reliable time data that is used for establishment of valid cryptographic channels and accurate recording of call metadata.
This SFR mitigates the threat by requiring the TSF to be able to request an X.509 certificate that it can present to external entities when establishing cryptographic communications.
This SFR mitigates the threat by requiring the TSF to synchronize with an NTP server for reliable time data that is used for establishment of valid cryptographic channels and accurate recording of call metadata.
This SFR mitigates the threat by generating real-time diagnostic activity for the TOE’s behavior that can be used to determine if it is experiencing conditions that could lead to a failure state.
This SFR mitigates the threat by ensuring the permanent erasure of residual data so that a decommissioned or refurbished device cannot be used to disclose TSF data without authorization.
This SFR mitigates the threat by requiring authentication of telecommunications devices that are connected to the TOE before the TSF will interact with them.
This SFR mitigates the threat by defining the trusted channels used for protection of signaling and media data used in VVoIP and SIP trunking communications.
This SFR mitigates the threat by defining when voice and video recordings are generated by the TSF, how they are stored, and how they are uniquely identified for future access.
This SFR mitigates the threat by requiring the TSF to support NTP communications to obtain reliable time data that is used for establishment of valid cryptographic channels.
This SFR mitigates the threat by requiring the TSF to be able to request an X.509 certificate that it can present to external entities when establishing cryptographic communications.
This SFR mitigates the threat by requiring the TSF to synchronize with an NTP server for reliable time data that is used for establishment of valid cryptographic channels.
This SFR mitigates the threat by requiring authentication of telecommunications devices that are connected to the TOE before the TSF will interact with them.
This SFR mitigates the threat by defining the trusted channels used for protection of signaling and media data used in VVoIP and SIP trunking communications.
This SFR mitigates the threat by requiring the TSF to support NTP communications to obtain reliable time data that is used for establishment of valid cryptographic channels and accurate recording of log data.
This SFR mitigates the threat by requiring the TSF to be able to request an X.509 certificate that it can present to external entities when establishing cryptographic communications.
This SFR mitigates the threat by requiring the TSF to synchronize with an NTP server for reliable time data that is
used for establishment of valid cryptographic channels and accurate log data.
This SFR mitigates the threat by requiring authentication of telecommunications devices that are connected to the TOE before the TSF will interact with them.
This SFR mitigates the threat by defining the trusted channels used for protection of signaling and media data used in VVoIP and SIP trunking communications.
This SFR mitigates the threat by optionally allowing an administrator to suppress the generation of certain audit records.
6 Consistency Rationale
6.1 Collaborative
Protection Profile for Network Devices
6.1.1
Consistency of TOE Type
When this PP-Module is used to extend the NDcPP, the TOE type for the overall TOE is still a network device. The TOE boundary is simply extended to include ESC functionality that is provided by the network device.
6.1.2
Consistency of Security Problem Definition
The threats defined by this PP-Module (see section 3.1) supplement those defined in the NDcPP as follows:
Table 5: Consistency of Security Problem Definition (NDcPP base)
The Base-PP does not define a threat for malicious traffic because all of its
security-relevant external interfaces define the network device as the
endpoint. This PP-Module defines interfaces where the TOE is facilitating a
connection between two external entities, such that traffic between them will
flow “through” the TOE as opposed to “to/from the TOE.” This threat is
consistent with the Base-PP because it is only applied to the interfaces defined
in this PP-Module where it is relevant; it does not apply to the interfaces
defined in the Base-PP.
The Base-PP does not define a threat for access to network resources because
all of its security-relevant external interfaces define the network device as the
endpoint. This PP-Module defines interfaces where the TOE is facilitating a
connection between two external entities, such that traffic between them will
flow “through” the TOE as opposed to “to/from the TOE.” This threat is
consistent with the Base-PP because it is only applied to the interfaces defined
in this PP-Module where it is relevant; it does not apply to the interfaces
defined in the Base-PP.
This threat is a specific instance of the
T.WEAK_AUTHENTICATION_ENDPOINTS threat defined in the Base-PP
because it refers to a scenario where an unauthorized client is able to
communicate successfully with the TOE because the TSF is incapable of
authenticating clients to determine which are or are not authorized.
The Base-PP does not define any policies that expect that environmental
systems are configured in any specific manner. Therefore, it is expected that requiring environmental systems to be configured in a secure manner will not
prevent the TSF from being fully implemented.
6.1.3
Consistency of OE Objectives
The objectives for the TOE’s operational environment are consistent with the NDcPP based on the
following rationale:
Table 6: Consistency of OE Objectives (NDcPP base)
This objective expects the TOE to be configured in such a manner that the
underlying OS on which the TOE runs cannot be used to alter the behavior of
the TSF. This is consistent with the OE.NO_GENERAL_PURPOSE objective in
the Base-PP that expects that general-purpose computing capability will be
prohibited by the OS. This ensures that OE.SECURED_PLATFORM can be
satisfied by the operational environment.
6.1.4
Consistency of Requirements
This PP-Module identifies several SFRs from the
NDcPP that are needed to support
Enterprise Session Controller functionality. This is considered to be consistent because the functionality provided by the
NDcPP is being used for its intended purpose.
The rationale for why this does not conflict with the claims
defined by the
NDcPP are as follows:
This PP-Module expands the scope of the Base-PPSFR to cover the audit data generated by ESC functionality.
FCS_DTLSS_EXT.1
This PP-Module adds an additional condition in which the TSF may be required to implement this protocol.
FCS_DTLSS_EXT.2
This PP-Module takes an optional requirement and makes it selection-based because it requires that any DTLS implementation used for ESC functions must implement mutual authentication.
FCS_NTP_EXT.1
This PP-Module refines the Base-PPSFR to only permit the selection of NTP v4 while leaving the rest of the requirement unchanged.
FCS_TLSC_EXT.1
This PP-Module takes a selection-based SFR used by the Base-PP and mandates its inclusion because ESC functions require the use of TLS as a client.
FCS_TLSC_EXT.2
This PP-Module takes an optional requirement and makes it selection-based because it requires that any TLS implementation used for ESC functions must implement mutual authentication.
FCS_TLSS_EXT.1
This PP-Module takes a selection-based SFR used by the Base-PP and mandates its inclusion because ESC functions require the use of TLS as a server.
FCS_TLSS_EXT.2
This PP-Module takes an optional requirement and makes it selection-based because it requires that any TLS implementation used for ESC functions must implement mutual authentication.
FIA_X509_EXT.1/Rev
This PP-Module mandates the inclusion of this selection-based SFR because it is a dependency of the TLS requirements that it also mandates.
FIA_X509_EXT.2
This PP-Module mandates the inclusion of this selection-based SFR because X.509 is required for
SIP and H.323.
FIA_X509_EXT.3
This PP-Module mandates the inclusion of this selection-based SFR because
it is a dependency of the X.509 requirements that it also mandates.
FPT_STM_EXT.1
This PP-Module refines the Base-PPSFR to restrict the selection of a time source to be an external NTP server.
The PP-Module iterates an SFR defined in the Base-PP to require the TOE to
generate a type of audit record that is specific to the functions defined in this
PP-Module.
The PP-Module iterates an SFR defined in the Base-PP to require the TOE to
generate a type of audit record that is specific to the functions defined in this
PP-Module.
This PP-Module requires the TOE to implement a mechanism for review of
system log records that are defined by this PP-Module in FAU_GEN.1/Log and
does not relate to the audit records required by the Base-PP.
The PP-Module iterates an SFR defined in the Base-PP by protecting audit data
required by this PP-Module in the same manner that the Base-PP defines for
its own audit records.
This SFR applies to the TOE’s implementation of an enterprise session
controller policy, which applies to the TOE’s through-traffic interfaces and is
therefore beyond the original scope of the Base-PP.
This SFR applies to the TOE’s implementation of an enterprise session
controller policy, which applies to the TOE’s through-traffic interfaces and is
therefore beyond the original scope of the Base-PP.
This SFR applies to data wipe operations which is beyond the original scope of
the Base-PP. The Base-PP defines FCS_CKM.4 for destruction of cryptographic
data but this PP-Module extends the requirements for data destruction to
entire disk storage locations.
This SFR applies to authentication of external entities on the TOE’s through-traffic interfaces and is therefore beyond the original scope of the Base-PP.
This SFR applies to authentication of external entities on the TOE’s through-traffic interfaces and is therefore beyond the original scope of the Base-PP.
This SFR requires the TOE to implement a secure default configuration. There
is no inconsistency here with the Base-PP because the Base-PP’s functionality
is not dependent on a particular default configuration.
This SFR requires the TOE to implement management functions that are
specific to ESC functionality. This does not conflict with the Base-PP because
these are all additional functions that go beyond what the Base-PP requires.
This SFR requires the TOE to take some specific action in the event of self-test
failures or other hardware failures. This extends the functionality required by
the Base-PP because the Base-PP defines the self-tests that the TOE must
perform but does not define specific requirements for the TOE’s behavior
when a self-test fails.
This SFR requires the TOE to implement trusted channels for VVoIP and SIP
trunking communications. This is an iteration of the same Base-PPSFR that
adds new external interfaces beyond the scope of the Base-PP.
This PP-Module extends the functionality required by the Base-PP by
optionally allowing the TSF to perform software update activities for
connected VVoIP endpoints and not just for the TOE itself.
This PP-Module optionally allows a conformant TOE to claim the ability to
suppress the generation of audit events based on certain factors. This does
not conflict with the Base-PP because if the administrators desires all required
auditable events to be audited, they can choose to disable this function.
This PP-Module optionally allows a conformant TOE to claim the ability to
securely store voice/video recordings. This does not conflict with the Base-PP
because the Base-PP already has the ability to define secured storage (e.g. through FAU_STG.2) so there is no expectation of availability that is being
violated if this is claimed
This PP-Module optionally allows a conformant TOE to claim the ability to
generate and retain voice/video recordings of calls. This does not conflict with
the Base-PP because the Base-PP already defines an audit mechanism via
FAU_GEN.1 and also does not define any requirements that would prevent
the generation of media recordings such as unobservability of user actions.
The TSF shall provide [security administrators] the ability to query the
currently executing version of the registered VVoIP endpoint
firmware/software and [the most recently installed version of the
registered VVoIP endpoint firmware/software. ]
The TSF shall provide [security administrators] the ability to manually
initiate updates to registered VVoIP endpoint firmware/software and [no
other update mechanism. ]
The TSF shall provide means to authenticate firmware/software updates
to the registered VVoIP endpoint using a [selection: X.509 certificate, digital signature, published hash] prior to installing those updates.
Application
Note:
The TOE may either validate the update prior to storing it for delivery to
registered VVoIP endpoints or it may provide the means to validate the
update to the VVoIP endpoint itself by preserving the manufacturer’s
integrity/authenticity mechanism and including that information in the update. In other words, either the TSF itself validates the update or it
facilitates the ability of the VVoIP endpoint to do this by providing all
information necessary to validate the update to the client.
It is typical behavior for ESCs to push software updates to registered
VVoIP endpoint devices. However, many VVoIP endpoints have the ability
to receive software updates from either an ESC or third-party update
server. This SFR addresses the case where it is the ESC’s responsibility for
delivery of software updates to registered VVoIP endpoints. For those
scenarios where the VVoIP endpoint gets its upload from a separate
server, then the ESC is not responsible for assuring
FPT_TUD_EXT.1/VVoIP.
The evaluator shall examine the TSS to verify that it describes the ability of the TOE to retrieve VVoIP
endpoint software/firmware updates and the process by which VVoIP endpoints can register to the TOE
and acquire these updates. The evaluator shall also examine the TSS to verify that it describes by which
the authenticity and integrity of VVoIP endpoint software updates are assured and what role the TSF has
in ensuring that updates are genuine.
Guidance
The evaluator shall examine the operational guidance to verify that it provides instructions on how to
acquire and verify a VVoIP endpoint software/firmware update from the manufacturer. The evaluator
shall also verify that the guidance includes instructions on how an ESC administrator can use the TOE to
apply software/firmware updates to registered VVoIP endpoints.
Tests
The evaluator shall perform the following test:
Test FPT_TUD_EXT.1/VVoIP:1:
Prior to downloading software update from TOE to registered VVoIP-client, the evaluator shall
check to ensure the current version of the registered client device can be appropriately obtained by means
of the operation methods specified by the administrator guidance.
Test FPT_TUD_EXT.1/VVoIP:2:
The evaluator shall check to ensure that VVoIP endpoint software/firmware updates are signed
and/or hashed by the manufacturer based on what is specified in the ST.
Test FPT_TUD_EXT.1/VVoIP:3:
The evaluator shall check to ensure that only administrators of the TOE are permitted to initiate an update to a registered VVoIP endpoint.
Test FPT_TUD_EXT.1/VVoIP:4:
The evaluator shall check to ensure that software updates are correctly performed by verifying
that the VVoIP endpoint is running the newly-obtained software version obtaining the newly updated
software version of the VVoIP-client device once update has complete.
Note: In some cases the ESC will not receive an explicit message from the VVoIP endpoint stating that the
software update executed successfully. In addition, some software updates will not take effect until a
reboot of the VVoIP endpoint is initiated remotely by the ESC or manually/physically at the VVoIP endpoint
device itself. In either scenario, the VVoIP endpoint itself will always indicate whether verification of the
update has failed. Therefore, the tester can (or may have to) verify successful software download by
querying the VVoIP endpoint device for new software/firmware version. The tester can also verify
whether software update failed by querying the registered VVoIP endpoint for errors.
In most cases, failed software update messages will originate from the VVoIP endpoint and not the ESC. Any failed software update reported by the registered VVoIP endpoint should have the report forwarded
to the TOE. However, as mentioned earlier, the registered VVoIP endpoint may not report successful
software downloads an therefore no ‘successful download’ report should be expected to be forwarded to the ESC. If the VVoIP endpoint does report a ‘software download complete’ or just ‘complete’, then the
TOE should receive a message indicating that the download was completed. When the VVoIP endpoint
reboots, it is expected to report the new software/firmware version to the TOE so that the new version
will be displayed in the OA&M application.
Test FPT_TUD_EXT.1/VVoIP:5:
The evaluator shall check to ensure that the verification of software/firmware updates from the
TOE to the VVoIP endpoint fails using unauthorized data or improperly signed updates. The evaluator shall
also check those cases where hash verification mechanism and digital signature verification mechanism
fail.
Note: this may require the evaluator to obtain a deliberately invalid software update from the device
manufacturer or developer access to the TOE so that a stored update can be manipulated directly in a
manner that will cause signature and/or hash verification to fail.
Appendix B - Selection-based Requirements
B.1 Auditable Events for Selection-based SFRs
Table 9: Auditable Events for Selection-based Requirements
The evaluator shall examine the TSS to verify that it identifies the attributes by which the TOE can be
configured to selectively enable or disable the generation of auditable events.
Guidance
The evaluator shall examine the operational guidance to verify that it provides a list of the attributes that
can be used to selectively enable or disable the generation of auditable events as well as instructions for
performing this operation.
Tests
Note that the following testing may be done in conjunction with other EAs since auditable events occur
as a by-product of the TOE being used to perform other security functions.
The evaluator shall perform TSF-mediated actions with all auditable events enabled and observe that
these events are audited as expected. The evaluator shall then log on to the TOE and disable auditable
events by each attribute defined in the ST. The evaluator shall then re-execute the same set of TSF-mediated actions as before and observe that audit logs are not generated for all auditable events that are
administratively disabled.
The TSF shall protect the stored voice and video recordings from unauthorized
disclosure and deletion by encrypting voice and video recording data that is stored
on the TOE using an encryption method specified in FCS_COP.1.
The evaluator shall examine the TSS to verify that it describes the method by which locally-stored voice
and video recordings are protected and that this method uses cryptographic mechanisms defined in
FCS_COP.1.
Guidance
If the TOE provides the ability to enable/disable encryption of locally stored voice and video recordings,
the evaluator shall verify that the operational guidance provides instructions on how to enable encryption
and directs the reader to ensure that this is enabled in the TOE’s evaluated configuration.
Tests
The evaluator shall perform the following tests:
Test FAU_STG.2/VVR:1:
The evaluator shall verify that the TSF provides no interface to access voice/video recording data
stored on the TOE except for legitimate access from an authorized administrator through the Operations,
Administration, and Management (OA&M) interface.
Test FAU_STG.2/VVR:2:
Both B2B subscriber calls and voice/video conferencing calls may be stored on the TOE based on
safeguards (i.e. secured or unsecured) for which they were recorded. The evaluator shall identify the
location of stored voice and video records and verify that this data is stored in an encrypted format for all
types of voice and video calls that can be processed by the TOE. If this functionality is configurable, the
evaluator shall follow the operational guidance to enable encryption prior to generating any voice/video
recordings.
FAU_VVR_EXT.2 Generation of Voice and Video Recordings
The inclusion of this selection-based component depends upon selection in
FAU_VVR_EXT.1.1.
The evaluator shall examine the TSS to ensure that it describes the conditions that can be set for the
retention of voice/video recordings (all calls to/from a specific endpoint are recorded by administrator
control, user manually specifies a call to be recorded at the start of the call session, etc.) and that these
are consistent with what is specified in FAU_VVR_EXT.2.1. The evaluator shall also ensure that the TSS
describes how voice/video recordings are retained, both in terms of the supported audio/video formats
and how each recording is uniquely identified for future access.
Guidance
The evaluator shall examine the operational guidance to ensure that it describes how retention for
voice/video recordings can be enabled and disabled, how stored records are encoded, and how they are
uniquely identified.
Tests
The evaluator shall disable all mechanisms for voice/video recording. The evaluator shall then place a
call that is mediated by the TSF and observe that no recording is generated after the call is completed. The evaluator shall then configure the TSF to enable recording, repeat the call, and ensure that a
recording is generated in the required format after the call is completed. The evaluator shall then repeat
this process and observe that a second recording is generated, and that the two recordings can be
distinguished from one another using unique identifying information. The evaluator shall then disable
recording, repeat the call, and observe that a recording is not generated.
If the TSF supports multiple mechanisms for enabling the recording of voice/video data, the evaluator
shall repeat this test for each supported mechanism to ensure that voice/video recordings are only
generated when that mechanism is active.
Appendix C - Extended Component Definitions
This appendix contains the definitions for all extended requirements specified in the PP-Module.
C.1 Extended Components Table
All extended components specified in the PP-Module are listed in this table:
Table 10: Extended Component Definitions
Functional Class
Functional Components
Security Audit (FAU)
FAU_VVR_EXT Voice and Video Recording
Security Management (FMT)
FMT_CFG_EXT Secure by Default Configuration
C.2 Extended Component Definitions
C.2.1 Security Audit (FAU)
This PP-Module defines the following extended components as part of the
FAU class originally defined by CC Part 2:
C.2.1.1 FAU_VVR_EXT Voice and Video Recording
Family Behavior
This family defines requirements for recording of voice and video data.
Component Leveling
FAU_VVR_EXT.1,
Recording Voice and Video Call Data,
requires the TSF to specify whether or not it records voice and video call data.
FAU_VVR_EXT.2,
Generation of Voice and Video Recordings,
requires the TSF to store uniquely identified voice and video call recordings in a certain format and when certain conditions are met
Management: FAU_VVR_EXT.1
The following actions could be considered for the management functions in FMT:
Ability to enable/disable voice and video recordings
The TSF shall provide the ability to retain voice and video recordings based on [assignment:
administrator-specified criteria]
FAU_VVR_EXT.2.2
The TSF shall store voice and video recordings as [assignment:
supported file
format] data.
FAU_VVR_EXT.2.3
The TSF shall uniquely identify individual voice/video recordings using the following method: [assignment:
unique identifying data].
C.2.2 Security Management (FMT)
This PP-Module defines the following extended components as part of the
FMT class originally defined by CC Part 2:
C.2.2.1 FMT_CFG_EXT Secure by Default Configuration
Family Behavior
This family defines requirements for protecting the TSF and its data from unauthorized access.
Component Leveling
FMT_CFG_EXT.1,
Secure by Default Configuration,
requires credentials to be administratively-defined
before allowing any other TSF-mediated security functionality and to enforce a deny-by-default
posture on the TOE.
The TSF shall provide only enough functionality to set new Security
Administrator credentials when configured with default credentials or no
credentials
FMT_CFG_EXT.1.2
The TSF shall be configured by default with permissions which protect it and its data from unauthorized access.
Appendix D - Inherently Satisfied Requirements
This appendix lists requirements that should be considered satisfied by products successfully evaluated
against this PP. However, these requirements are not featured explicitly as SFRs and should not be
included in the ST. They are not included as standalone SFRs because it would increase the time, cost, and
complexity of evaluation. This approach is permitted by [CC] Part 1, 8.2 Dependencies between
components.
This information benefits systems engineering activities which call for inclusion of particular security
controls. Evaluation against the PP-Module provides evidence that these controls are present and have
been evaluated.
Requirement
Rationale for Satisfaction
FIA_UID.1 – Timing of Identification
FIA_UAU.2 (which is iterated in this PP-Module as
FIA_UAU.2/TC and FIA_UAU.2/VVoIP) has a dependency
on FIA_UID.1 because authentication of an external entity
requires that entity to first identify itself so that its identity
can be validated by the authentication process. This SFR has not been defined in this PP-Module because
in both iterations of FIA_UAU.2, the entity being
authenticated is a trusted IT product in the TOE’s
operational environment that communicates with the TSF
over a channel specified in FTP_ITC.1/ESC. FTP_ITC.1/ESC
explicitly states that the channel itself provides ‘assured
identification of its end points’ which implies that these
entities are identified prior to the authentication behavior
required by the iterations of FIA_UAU.2.
FMT_MSA.3 – Static Attribute Initialization
FDP_IFF.1 has a dependency on FMT_MSA.3 to define the
default security posture of security attributes for the
purpose of information flow control enforcement. This SFR
has not been defined by this PP-Module because the
enforcement of FDP_IFF.1 is not dependent on the initial
state of security attributes. For example, FDP_IFF.1.2
requires the TSF to determine if a communication attempt
is valid before authorizing it. This is true regardless of
whether the default value of security attributes associated
with the connection attempt are permissive or restrictive;
there is no difference in how the TSF determines “validity”
in this case.
The default values of security attributes do not cause the
information flow control policy to behave differently for
those rules that must always be enforced by the TSF. The
ST author has the ability to define additional default-allow
or default-deny rules through the assignments in FDP_IFF.1.4 and 1.5. The ability to specify this behavior in
the policy itself implies a default security posture of the
relevant security attributes that does not need to be
explicitly re-stated in a separate SFR.
Appendix E - Entropy Documentation and Assessment
The TOE does not require any additional supplementary information to describe its entropy source(s)
beyond the requirements outlined in the Base-PP. As with other Base-PP requirements, the only additional
requirement is that the entropy documentation also applies to the specific ESC capabilities of the TOE that
require random data, in addition to any functionality required by the Base-PP.
